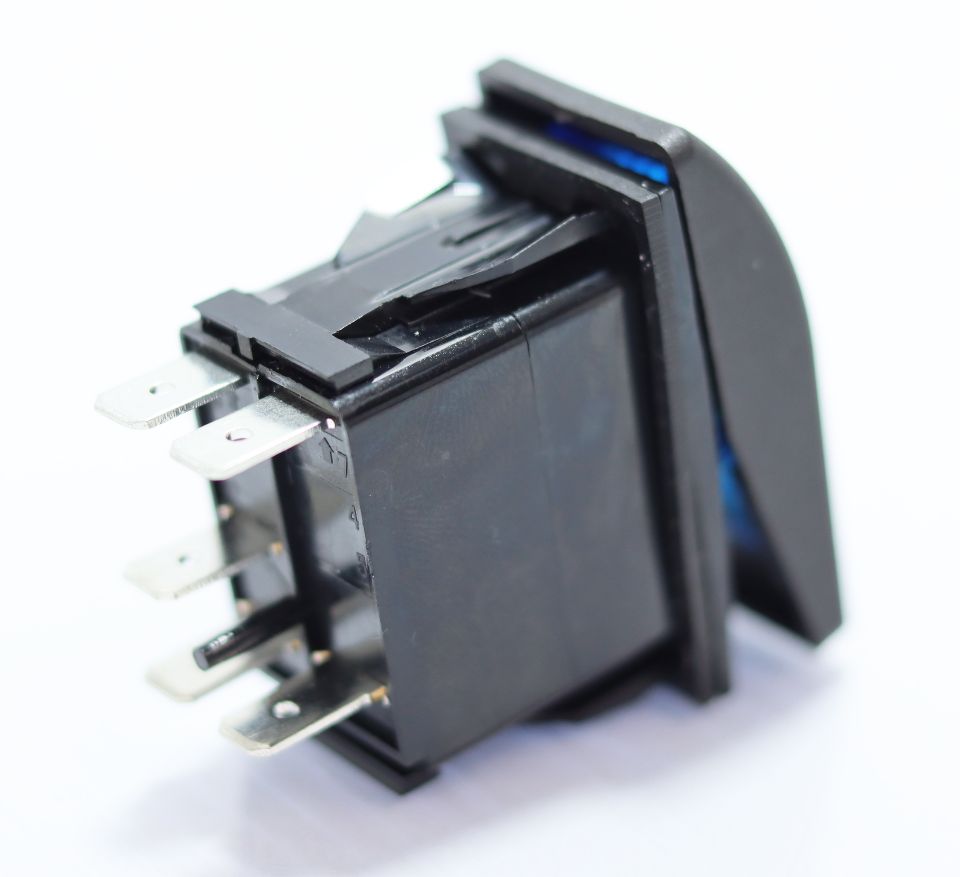

Euralight 5-pin illuminated toggle switch for auxiliary lights
€12.00
Available, delivery time: 2 - 3 days
- 1x toggle switch – illuminated
- Switching function: ON / OFF

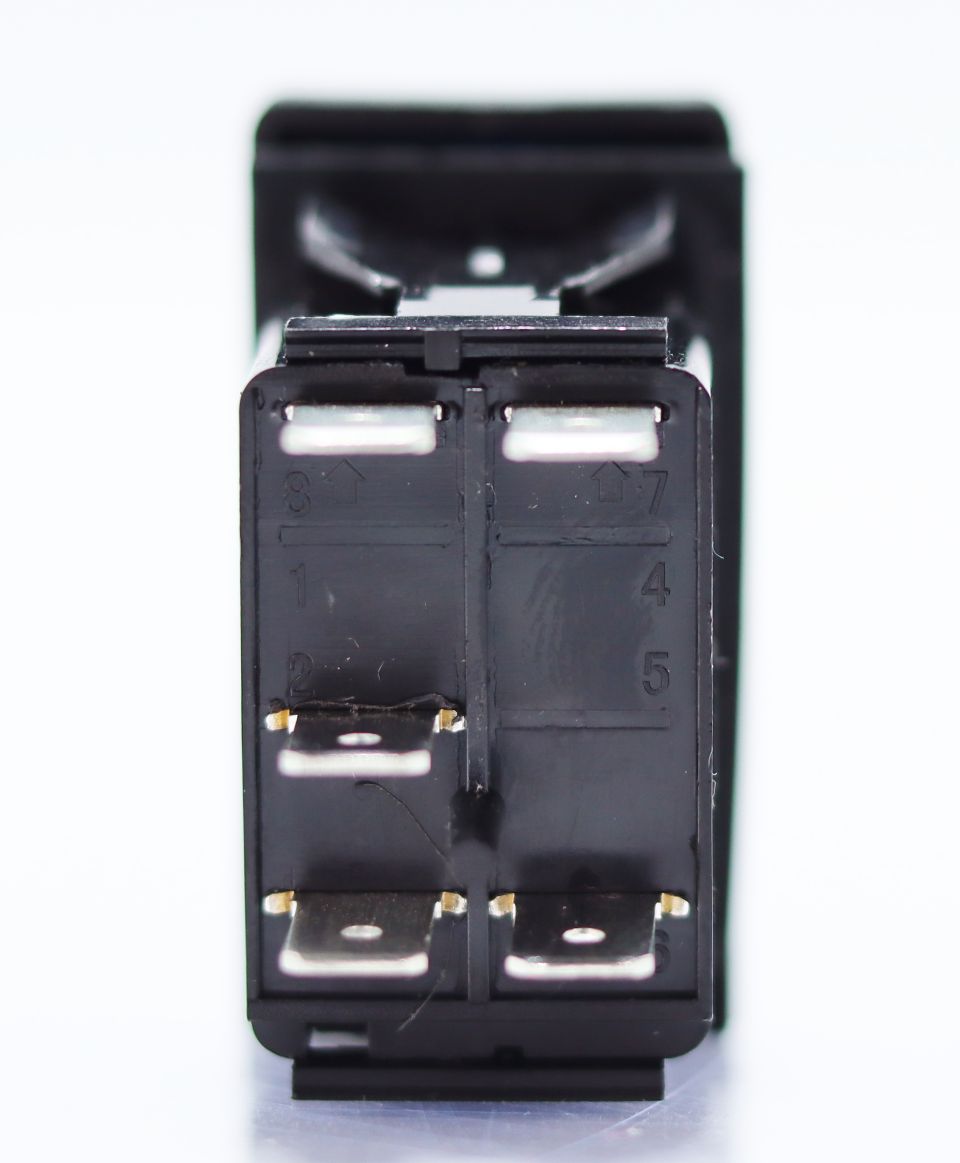

- Number of connecting pins: 5-pin
- Operating voltage: 12V / 24V

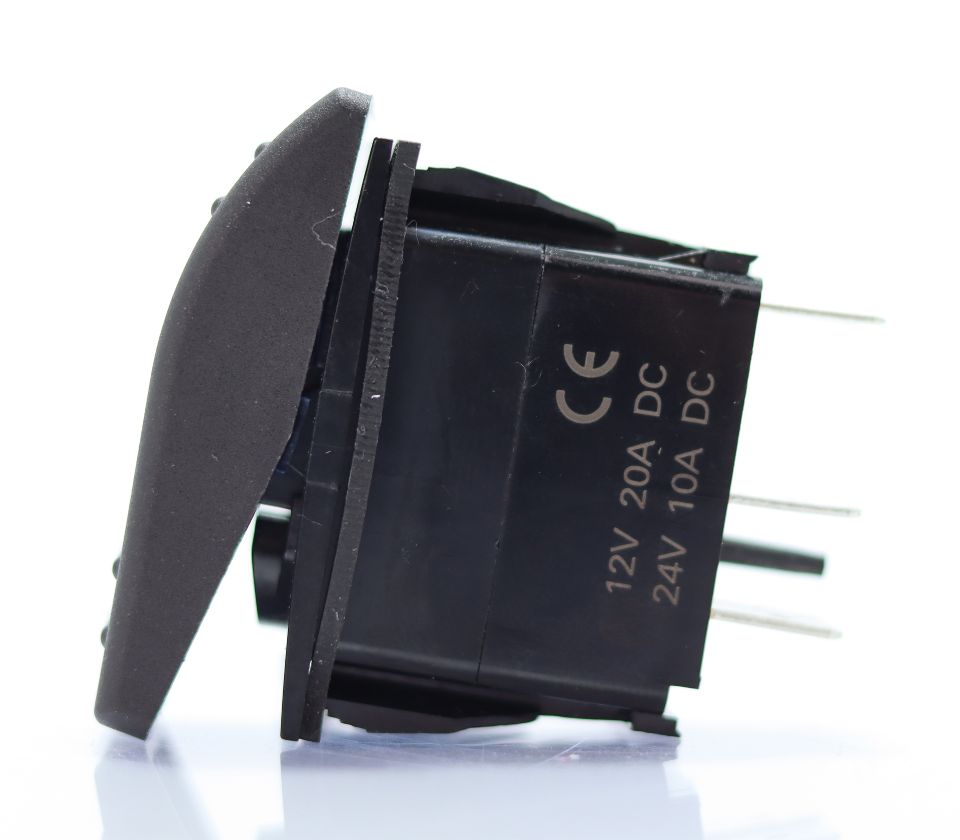

- Current rating: 20A at 12V / 10A at 24V
- Colour: Black
- Labelling: ‘DRIVING LIGHTS’
- Symbol: Headlamp symbol
- Illumination: integrated LEDs
- Two options for switch illumination

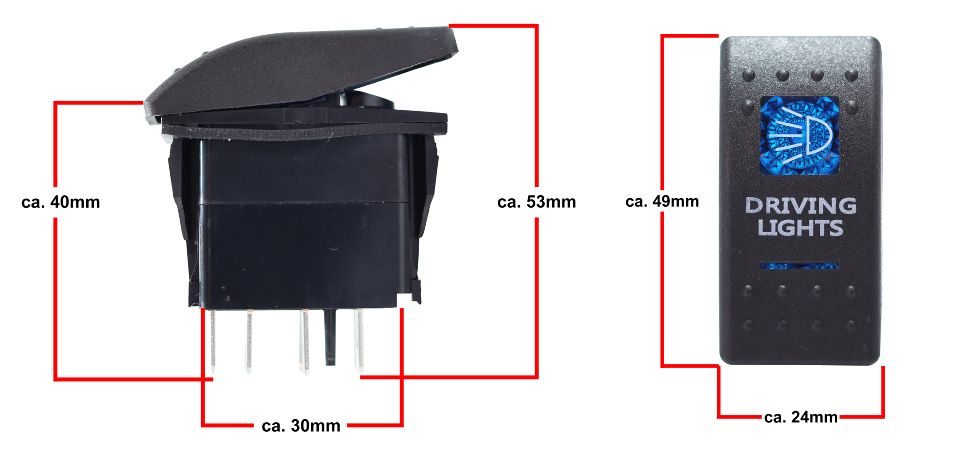

- Dimensions: see diagram

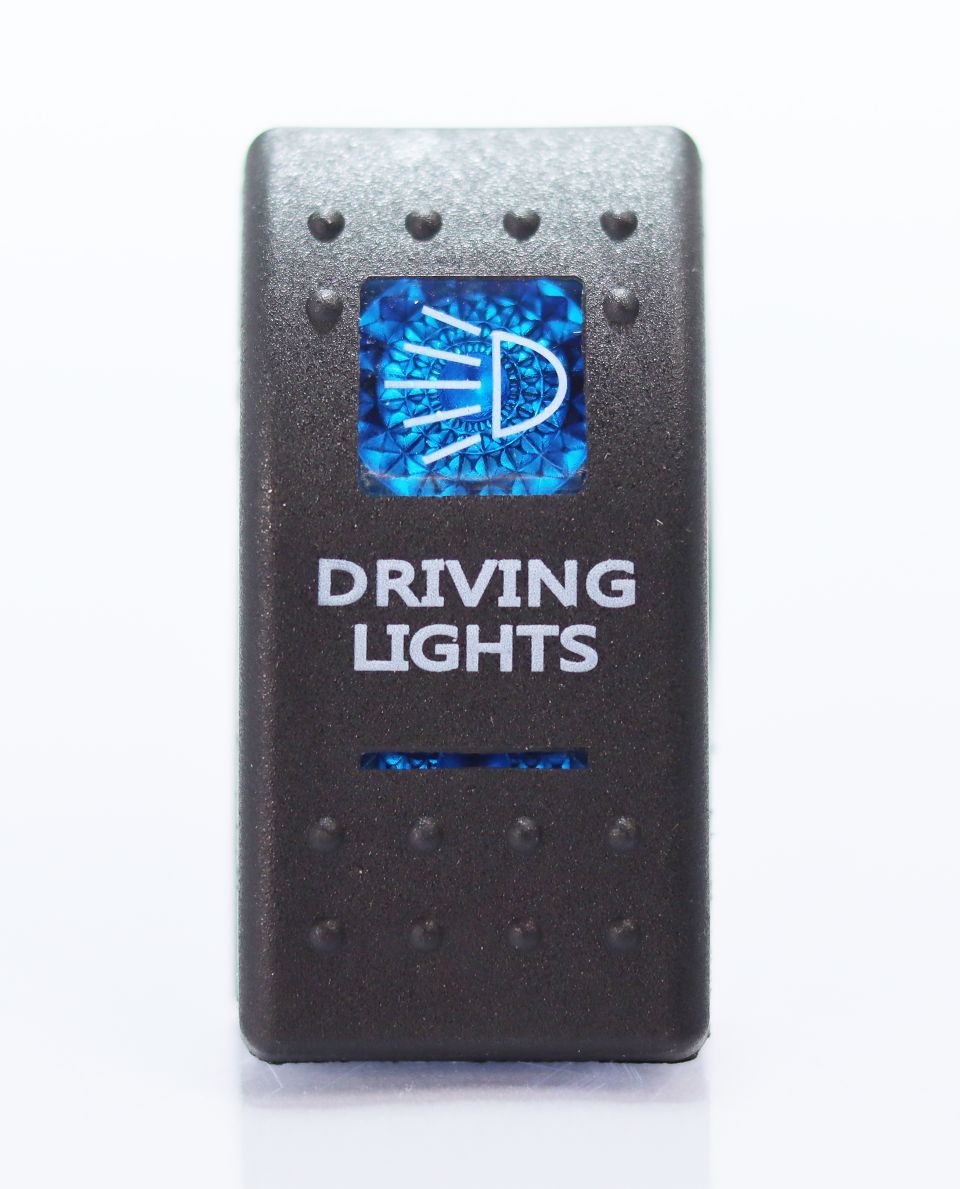

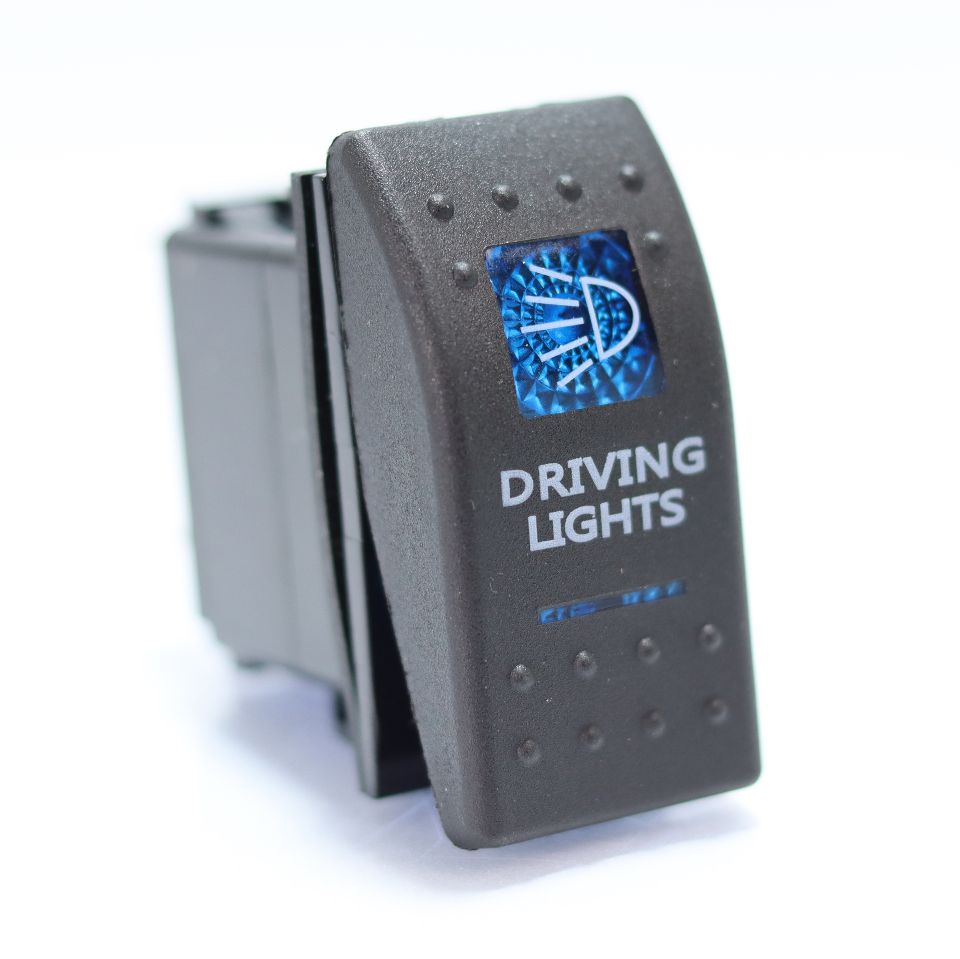

High-quality 5-pin toggle switch in black with illuminated switch function and the inscription ‘DRIVING LIGHTS’, including a headlamp symbol.
The switch is ideal for switching headlamps, auxiliary headlamps, work lights and other vehicle lighting on and off. Designed for 12V and 24V, it is versatile and can be used in cars, lorries, vans, motorhomes, tractors, off-road vehicles and other vehicles.
Technical specifications:
- Switching function: ON / OFF
- Number of connection pins: 5-pin

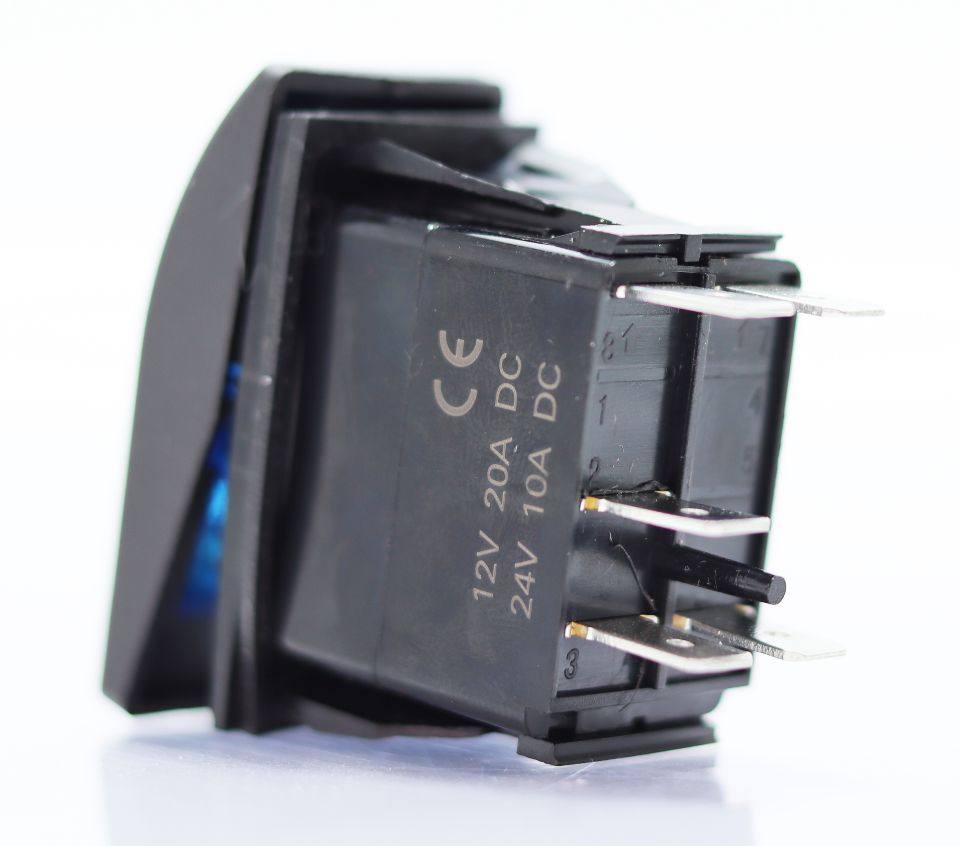

- Operating voltage: 12V / 24V
- Current rating: 20A at 12V / 10A at 24V
- Colour: Black
- Labelling: ‘DRIVING LIGHTS’
- Symbol: Headlamp symbol
- Illumination: integrated LEDs
Two options for switch illumination:

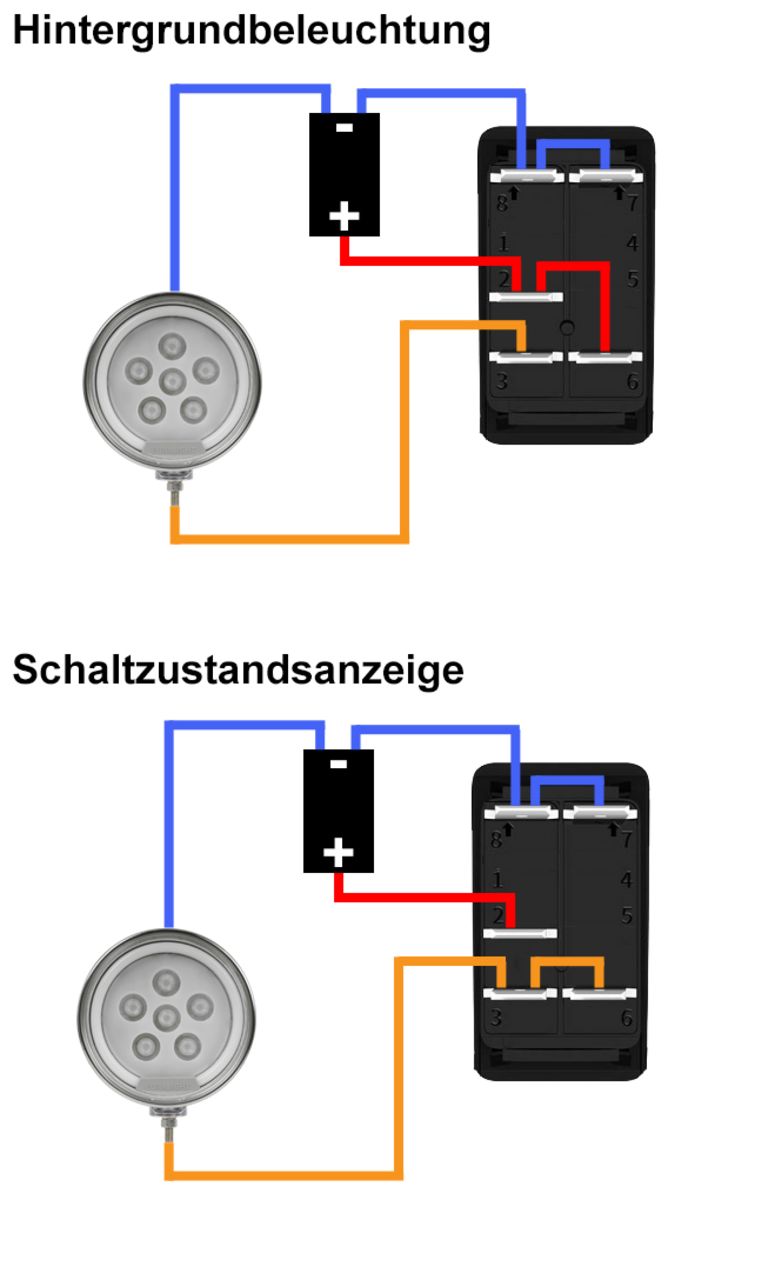

- The 5-pin switch offers two wiring options for the integrated lighting:
Backlighting:
- The lower LED can be connected to the dashboard or instrument panel lighting, ensuring the switch remains visible at all times. The upper LED illuminates as soon as the switch is switched on.
Switch status indicator:
- With this connection option, both LEDs light up only when the switch is activated or switched on.
This allows the lighting to be adapted depending on the desired application and the existing vehicle wiring.
Markings and lighting:
- The ‘DRIVING LIGHTS’ symbol or headlamp symbol printed on the switch face clearly identifies the switch’s function. The printed graphic itself is not illuminated.
Suitable for a wide range of applications – ideal for controlling:
- Auxiliary headlamps
- Work lights
- LED headlamps
- Off-road lighting
- Vehicle lighting
- Roof and front headlamps
- Lighting on tractors and agricultural machinery
- Lighting on lorries and commercial vehicles
- Motorhomes and vans
Advantages at a glance:
- 5-pin toggle switch
- ON/OFF switching function
- For 12V and 24V
- 20A at 12V / 10A at 24V
- Integrated LED lighting
- Two wiring options for the lighting
- Black housing
- Clear ‘DRIVING LIGHTS’ labelling
- Headlamp symbol for quick identification of function
- Ideal for cars, lorries, off-road vehicles, tractors, motorhomes and commercial vehicles
Important note:
- Please check the pin configuration and the switch’s maximum electrical load capacity before installation. In the event of higher power consumption or power ratings exceeding the specified load capacity, the connected load should be switched via a suitable relay. Please check before installation whether the dimensions are suitable for your desired mounting position.
